Screener (Rotary / Shaking / Staged)
Efficient separation and screening for biomass, wood, pellets, and other granular products — used for grading, re-circulation comminuting, cleaning, and stage treatment.
High Screening Efficiency
Quick Screen Change
Multiple Industries

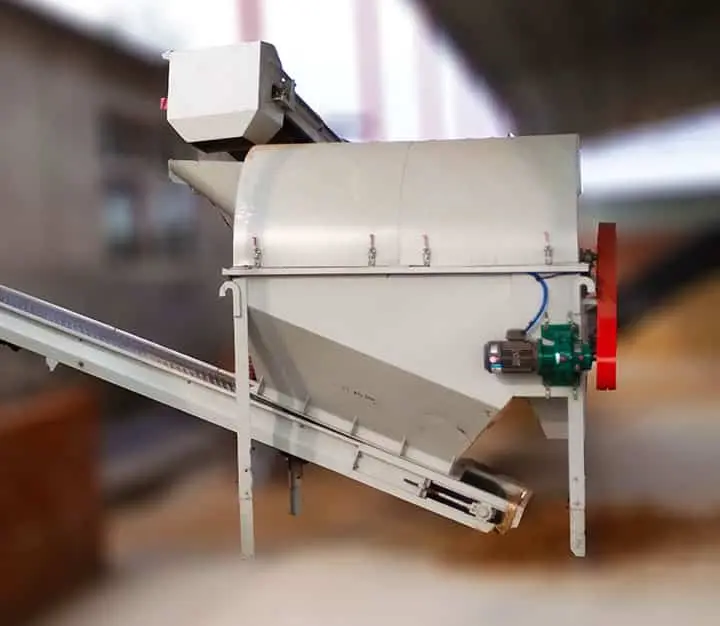

Rotary Screener
Overview
Rotary screener is mainly used for complex fertilizer screening with high output, easy to repair.
It can stage screen raw materials according to different screen holes for ideal screening efficiency.
| Model | Power (kW) | Capacity (t/h) |
|---|---|---|
| GTS-100×2 | 1.5 | 1–2 |
| GTS-120×2 | 1.5 | 1.5–4 |
| GTS-150×2.5 | 2.2 | 2–5 |
| GTS-180×3 | 3 | 3–7 |
| GTS-200×3 | 4 | 4–8 |
| GTS-220×4 | 5.5 | 8–10 |
| GTS-250×4 | 7.5 | 10–15 |

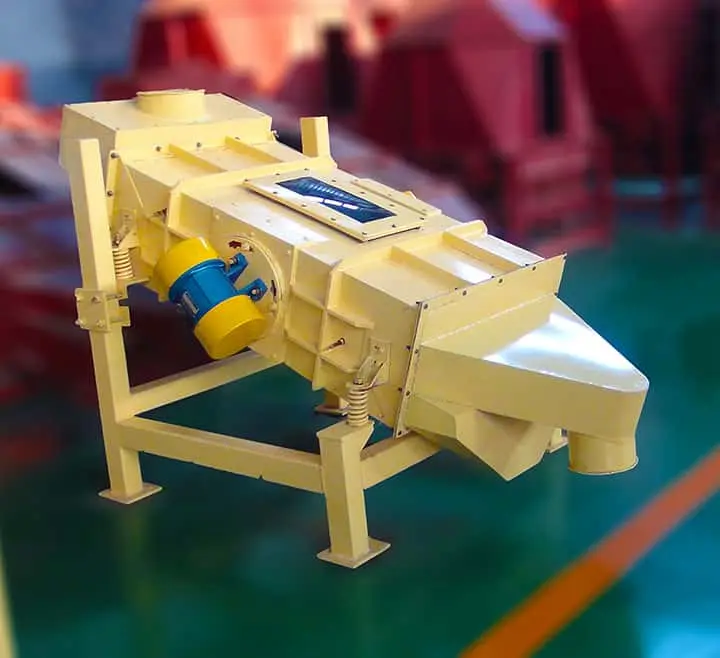

Shaking Screener
Overview
SKFZ shaking staged screener is mainly used for hierarchical process for the complete line.
It can be used together with the crusher to screen out irregular large pellets and powder.
| Model | Power (kW) | Capacity (t/h) |
|---|---|---|
| SKFZ60×2c | 0.25 | 1–2 |
| SKFZ80×2c | 0.25 | 2–4 |
| SKFZ110×2c | 0.37 | 3–6 |
| SKFZ150×2c | 0.37 | 5–10 |

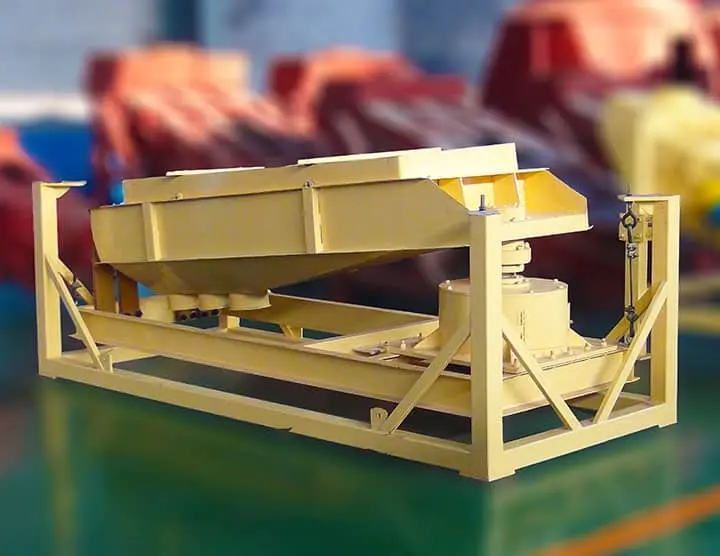

Staged Screener
Highlights
- The streamline shape discharge hole avoids material deposits and cross contamination.
- Screen structure is simple; screens can be changed quickly and fixed by layer.
- For grading and secondary circulation comminuting of pellets and broken materials.
- For cleaning and stage treatment of pellets and powders.
- Applied in foodstuff, chemical industry, sugar refinery, mining, paper making, fertilizer, and more.
| Model | Power (kW) | Capacity (t/h) |
|---|---|---|
| SFJH80×2c | 2.2 | 2–4 |
| SFJH110×2c | 3 | 3–6 |
| SFJH130×2c | 5.5 | 5–10 |
Machine Gallery
Need the right screening solution?
Send us your material type, target size, and capacity — we’ll recommend the best screener type and model.
